Rooflights / Product information
Mardome Reflex
Mardome Reflex is a glazing only unit designed specifically for refurbishment projects where the glazing only needs to be replaced and can be easily fixed to existing kerbs or upstands.
More about this product
The unit is supplied with a fixing kit including weather tight washers and cover plugs.
- Sizes 450 x 450mm to 1350 x 1350
- Glazing only option
- Dome or pyramid shape options
Published product information
Detail & guidance
Sizes 450 x 450mm to 1350 x 1350
Glazing only option
Dome or pyramid shape options
Single, double or triple glazing
Clear, textured, opal or bronze polycarbonate glazing
ideal for
Open plan living
Contemporary spaces
Kitchens
Hallways
Bathrooms
Please refer to the fixing instructions supplied with each Mardome rooflight or contact our Technical Department for guidance.
Sizes
| Standard Dome Sizes | |
|---|---|
| 450 x 450* | 900 x 1200 |
| 600 x 600 | 1050 x 750 |
| 600 x 900 | 1050 x 1050 |
| 600 x 1200 | 1200 x 1200 |
| 750 x 750 | 1200 x 1800 |
| 750 x 900 | 1200 x 2400 |
| 900 x 900 | 1350 x 1350 |
* Not available in pyramid shape option
Thermal Insulation Mardome Reflex is available in single, double and triple skin polycarbonation glazed units. To assist compliance with Part L, Ariel Plastics recommend installing no less than triple glazed Mardome rooflights which achieve a U-value of 1.8 W/m²K and comply with the requirements of Part L of the Building Regulations.
Polycarbonate Glazing The resilient polycarbonate glazing has added UV protection for long term performance.
Ariel Price Guide Download for our latest product and pricing information
Supporting resources
Documents for this range
Open
BBA Mardome Reflex (PDF, opens a new tab)
PDF · discovered on the published product page. File version and current applicability require confirmation.
Download for our latest product and pricing information (PDF, opens a new tab)
PDF · discovered on the published product page. File version and current applicability require confirmation.
Linked in the published catalogue
Related products & components
Rooflights

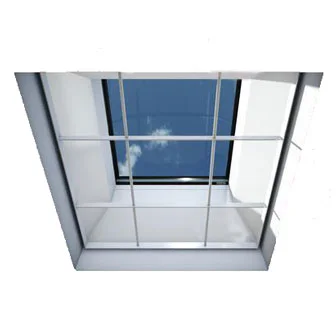

Mardome Security Grille
